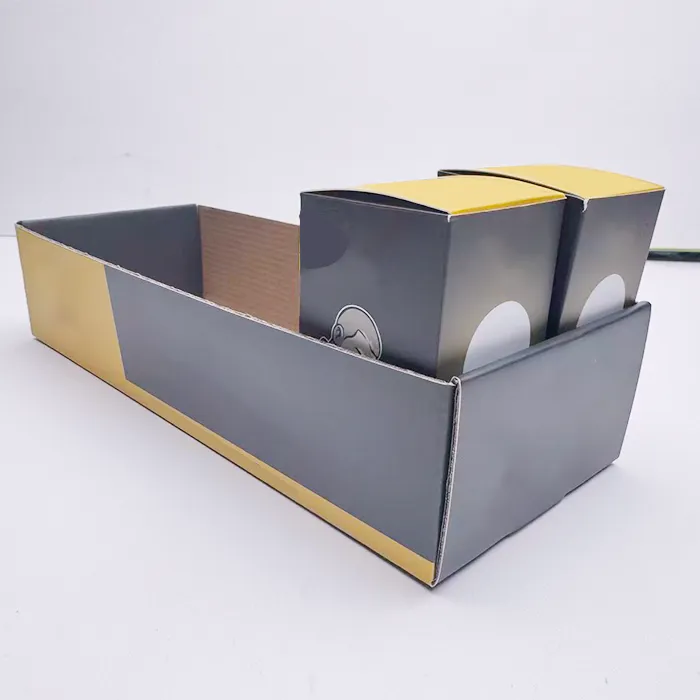

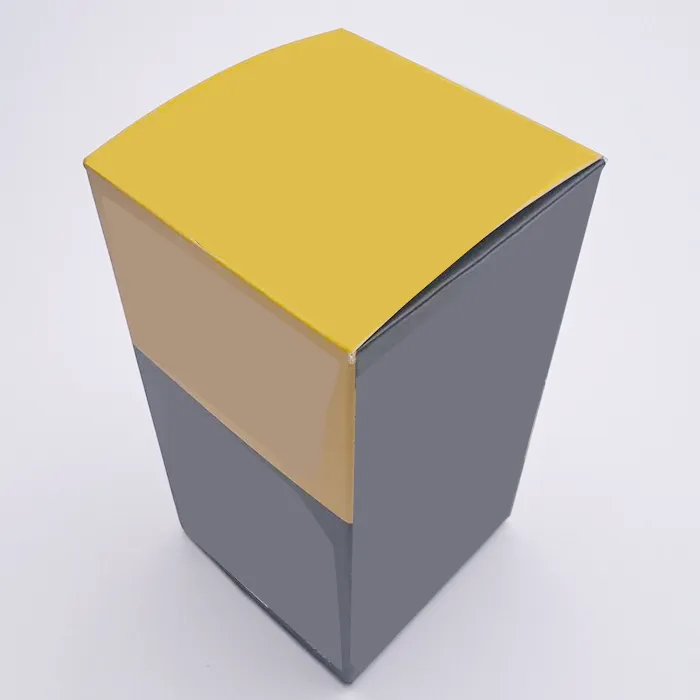

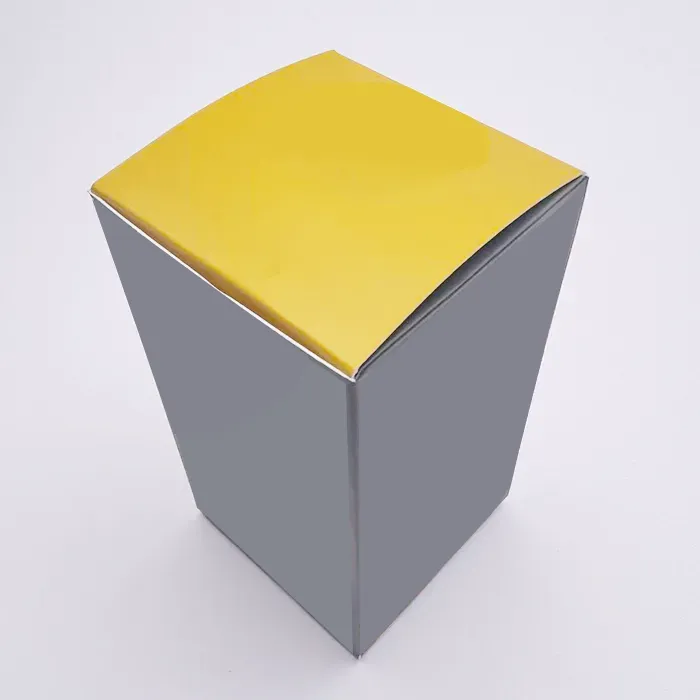

Light Bulb Boxes

Differences Between Machine and Manual Packaging

This means Doyoupacks need to consider how the light bulb boxes can adapt to the machine’s robotic arm to ensure smooth automated packaging. First, the manual packaging offers flexibility and strong controllability. Experienced workers by our China packaging factory deeply understand the characteristics of Bulb Packaging, enabling precise control over force, assembly direction, and methods during packaging. This minimizes wrinkles and damage. The drawbacks include lower efficiency and higher labor costs, particularly in developed countries. Undoubtedly, the automated packaging of LED Bulb Box excels at standardized, chaeap and high-volume orders, offering lower unit costs and consistent assembly quality. However, its limitations are significant: due to the inability of the equipment to flexibly control assembly force and suction (box picking), it will easily cause damage to box locking tabs, material tearing, or box drops due to insufficient suction.

Optimized Design of the Insert Structure for Machine Packaging

Regarding the Box locking tab details, Doyoupacks increased the curvature of the locking tab and the insertion gap of the tab. Since mechanical packaging actions are rigid, Doyoupacks reserved sufficient buffer space in the led packaging box. Increasing the curvature effectively prevents jamming or edge damage, while enlarging the insertion gap allows for smoother tab insertion. We also added a snap-lock design to prevent the box lid from popping open, making the seal more secure.

Advanced Pre-folding Design for Machine Packaging

Since the machine uses suction to extract and form the LED Bulb packaging box, the flat, one-piece packaging must be expanded into shape. However, suction force is difficult to adjust precisely—excessive force may tear the packaging, while insufficient force fails to expand it properly. Moreover, abrupt force application significantly increases the risk of packaging damage. Therefore, Doyoupack, as a professional packaging supplier, implemented a pre-folding process. During led packaging box assembly, an additional step was added to pre-expand the packaging once, ensuring it forms smoothly during the actual machine operation.

Reinforced Insert Design for Machine Packaging

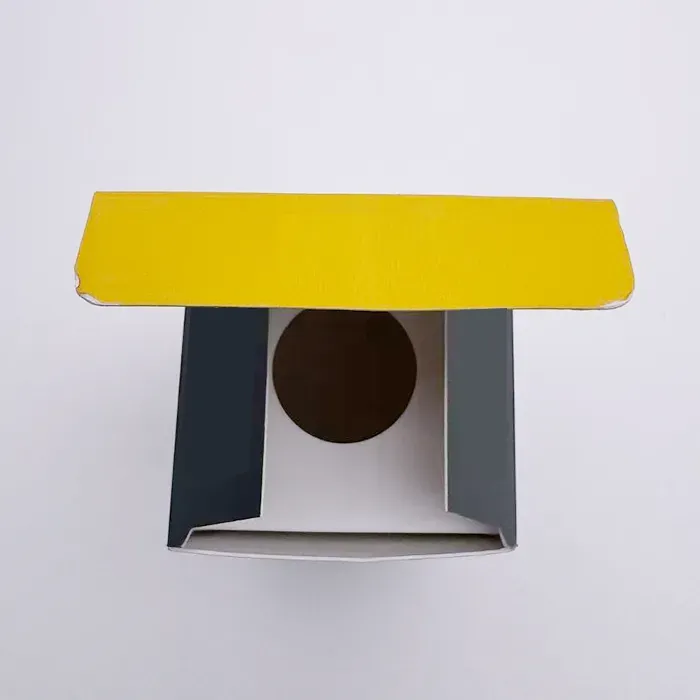

To safeguard the internal bulbs, Doyoupacks incorporated an inner insert and customized a “sunflower” structure design at the center to securely hold snap-fit bulbs. Over 5mm of cushioning space is reserved between the bulb top and the packaging lid. This not only prevents the outer Light Bulb Packaging Box from bulging and deforming but also stops bulbs from rattling and breaking during transit.

Visual & Material Design

In terms of appearance, Doyoupacks applied spot-color printing to accurately highlight the client’s brand colors, The gradient glow effect of the light bulb was meticulously prepared during prepress by our design team of factory , and all illustrations were printed clearly. The outer box utilizes affordable Ivory paper, Matte lamination is a popular choice for premium brands. The inner insert employs sustainable duplex pape for enhanced flexibility and crack resistance. As the insert is plain, lamination or other protective finishes are unnecessary, allowing the cost savings of led packaging box.

Doyoupacks doesn't manufacture conventional and simplistic packaging. Our professional packaging solution gives us the confidence to tackle innovative and challenging packaging projects. That's precisely why this client chose us as their only one China packaging supplier . He envisioned a fully automated lightbulb brand, while Doyoupacks refused to be just another generic, easily replaceable packaging manufacturer. We each possess unique competitive advantages—that's the foundation of our market presence.
